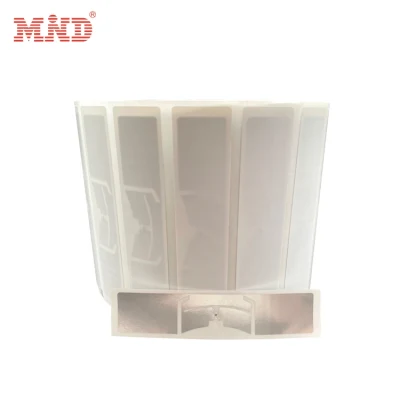

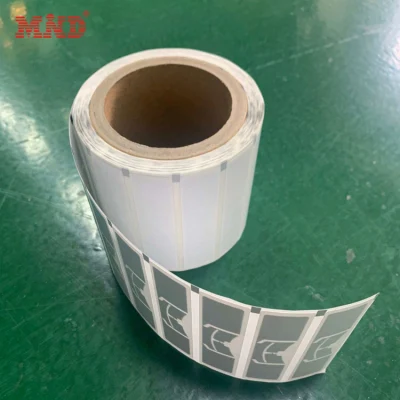

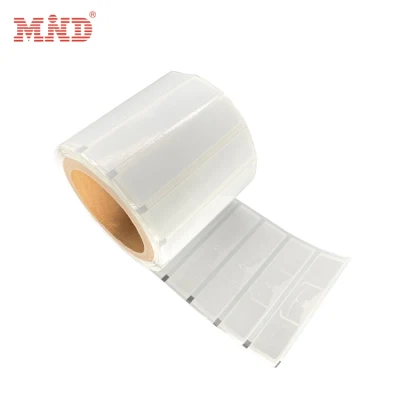

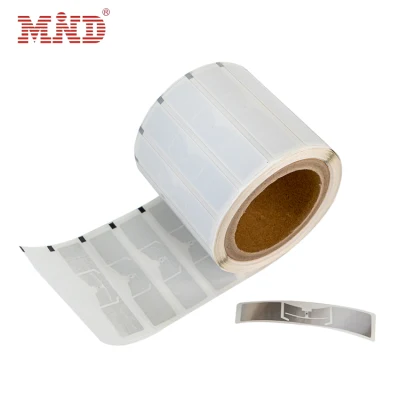

RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield Label

Get genuine RFID Windshield Inlay Sticker with H9 Chip from our factory. Find Long Range UHF RFID Windshield Label and Anti Counterfeit features.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • FAQ
Overview

Basic Info.

Model NO.
9954
Chip
Higgs 9
Antenna Size
93*19mm
Label Size
100*38mm or Customizable
Application
Asset Management, Clothing...
Protocol
ISO/IEC 18000-6c EPC Class1 Gen2
Frequency
860-960MHz
Antenna
9954/ 9654
Transport Package
1000PCS or 2000PCS Per Roll /Carton
Specification
standard size or customized
Trademark
MIND
Origin
Sichuan China
HS Code
8523521000
Production Capacity
500000

Product Description

RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield LabelManufacturer 9954 9654 100x38mm 860-960MHz Alien H9 UHF RFID label inlay sticker

RFID Dry Inlay
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags. RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; Frequency requirements: 869-915mhz-uhf / 13.56mhz-iso14443 / 13.56mhz-iso 15693. MIND has technicians and offer antenna design sevice to meet various customer requirements.
RFID Wet inlay/sticker
RFID Wet inlay and sticker contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + glue + realese paper, if no logo print, customer can use the rfid wet inlay directly without make it as white/printed label for cost saving. Frequency requirements: 869-915mhz-uhf / 13.56mhz-iso14443 / 13.56mhz-iso 15693. MIND has technicians and offer antenna design sevice to meet various customer requirements.
RFID White label, RFID sticker
RFID white label,RFID sticker contains both back glue and top coated paper or PET, the structure is Coated paper/PET+antenna + chip + chip package + glue + realese paper. Rfid lable packaging can be divided into fold, roll and single product. Products can be divided into thermal printing and heat transfer printing; materials can be paper, waterproof materials and PVC or PET for choice, size diversity for customers to choose, encryption processing, personalized and coding services, thermal printing full package; frequency requirements: 869-915mhz-uhf / 13.56mhz-iso14443 / 13.56mhz-iso 15693. Send inquiry now.


Product Description

Chip Higgs 9
Frequency 860~960MHz
Material Coated Paper/ PET/Synthetic paper/Thermal paper/customization
Working Mode Passive
IC Life 100,000 Programming cycles, 10years data retention
Operating temperature/humidity -25~50ºC/20%~80% RH
Storage temperature/humidity +23°C±5°C/ 50%±10% RH(Without condensation).
Antenna Aluminum Etching, 93*19mm
Wet inlay/Label Size 96*23mm or customization
Printing Full Color Printing, Logo, Barcode, QR code, etc
Sample Sample is free for your quality test
Protocol ISO/IEC 18000-6C EPC Class1 Gen2
Packaging 1000-5000pcs/roll, 4 rolls /carton
Place of origin Chengdu,china
Application/Solution Secure Admission Control/Cashless Payment Membership and loyalty programs
Event Access and Branding/Social Media/Retail
Environment/Games & Toys Location/Electronics/Trade Shows
Events/Call request/Business Cards

RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield Label RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield Label

Our Advantage:

1.Antenna: Made by laser cutting, with straight antenna lines, stable performance, environmental protection,no environmental pollution caused by traditional etching processes.

2.OEM: label design & selection, antenna design and manufacturing

3.Excellent R & D team, complete R & D equipment system

4.Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm

RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield Label

Packaging & Shipping:


By Sea, by air and express, client can choose what you want!

RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield Label

Company & Producing:
RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield Label
Established in 1998, Chengdu Mind IOT Technology Co.,Ltd is a leading manufacturer specialized in the designing,researching,manufacturing and selling of RFID Dry Inlay,Wet inlay/sticker,RFID White label/sticker,NFC label/sticker,Asset management rfid tag,Soft/ABS/Epoxy/NFC anti-metal label etc.

We will supply more diversified designs and professional services continuously and we sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.

We are looking forward to receiving your enquiries soon.


RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield Label

FAQ



Q: 1. Why us?

A: Excellent R & D team-quick to solve problems, creative to design new items, latest RFID items are from us.Big capacity-cost-effective and flexible to adjust production for volume and urgent orders.Strict QC factory-Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm

Q: 2. Can I get Free Samples?

A: The free sample will be offered all the time. But if you want customized samples,it would be charged.

Q: 3. How long can I expect to get the sample?

A: 3-5 working days.

Q: 4. What about the lead time for mass production?

A: 4-7 working days in regular,1-2 weeks for the busy season.

Q: 5. OEM & ODM available?

A: We offer label design & selection, antenna design and manufacturing.

Q: 6. What are your terms of delivery?

A: EXW, FOB, CIF and the bases of the other on your requestion.

RFID Windshield Inlay Sticker Anti Counterfeit etc H9 Chip Long Range UHF RFID Windshield Label
