Basic Info.
Model NO.
RFID TAG
Trademark
HECERE
Origin
Fujian, China
HS Code
8523521000
Production Capacity
80000000/Month
Product Description
Product Description

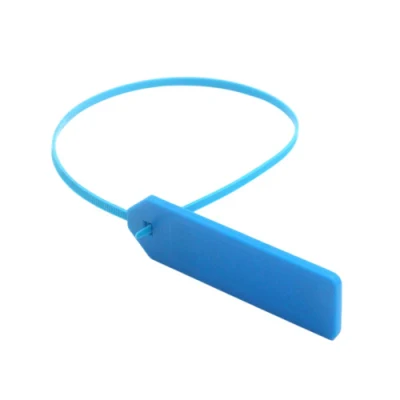

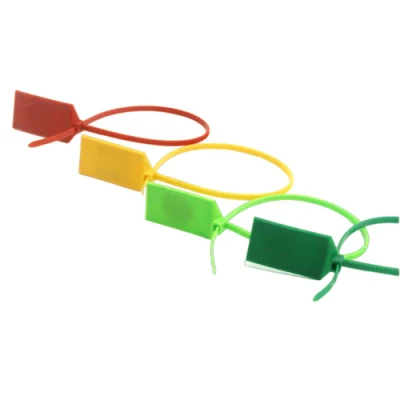

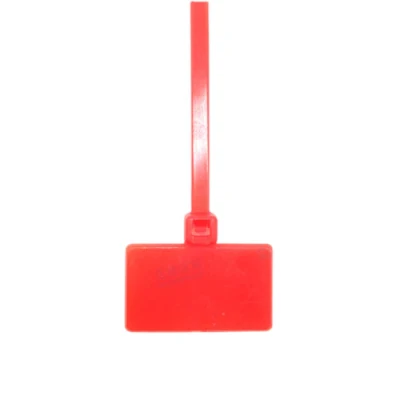

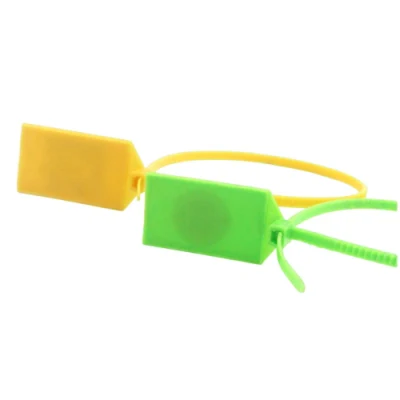

RFID tie tag
| Model | TT001 |
| Material | ABS/pp/Silicone |
| Size | 163x20x5 mm or customized |
| Frequency | HF 13.56MHz, UHF 860-960MHz |
| Protocol | ISO18000-6C, ISO14443A, ISO15963 |
| Read distance | HF 0-10cm, UHF 0-10M(It depends on reader, tags and environment etc.) |
| Waterproof level | IP67 |
| Operating temperature | -20ºC~ 85ºC |
| Working Life | 10 years |
| Application | Gas cylinder tracking, Asset management, Baggage tagging & Pipes, cables, shackles and lifting equipment, etc. |
RFID tie tag
Hecere cable tag suitable for indoor or outdoor applications. Size 320x24x8mm. Material: High Quality ABS and PE material. Weight: 12 grams. Class Protection: IP68. Operating temperature: -25°C to +85°C. Storage Temperature: -55°C to +100°C. Case Color: generally dark-grey. Delivery: singulated. EPC number: 96bit (exstensible 480bit). TID number: 64bit. User Memory: 512bit. Size Antenna: 38x17mm. Reading Range: up to 4/5meters.
The built-in inlay antenna adopts the first exposure development etching technology. The aluminum etching line width can be controlled at ± 0.03mm, and the smallest line can achieve a small tolerance of 0.075mm antenna line smooth line to line width, more accurate resonance frequency, faster and more stable data reading and writing.
